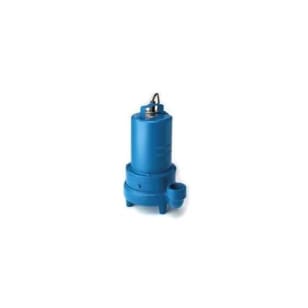

Barnes 103542 EHV412 Submersible Effluent Pump, 1 Phase, 1/2 hp

Part # 156763

MFG # 103542

Barnes 103542 EHV412 Submersible Effluent Pump, 1 Phase, 1/2 hp

$39.99

Item Features

Designed for handling greywater from wash basins, showers and baths in typical septic tank / effluent applications

It features cast iron construction and a stainless steel shaft and is CSA listed.

2 in NPT, Female, Vertical Discharge

Single Mechanical, Oil Filled Reservoir , Carbon/Ceramic/Buna-N Seal

Oil Filled Class B Motor

Permanent Split Capacitor (PSC)

Frequency	60 Hz
Voltage	115 V
Series	EHV
Horsepower	0.5 hp
Amperage Rating	6.4 A
Phase	1
Motor Speed	3450 rpm
Cord Type	SJTOW 14/3 AWG 20 ft
Impeller Type	Cast Iron Multi-Vane Vortex
Temperature Rating	104 deg F
