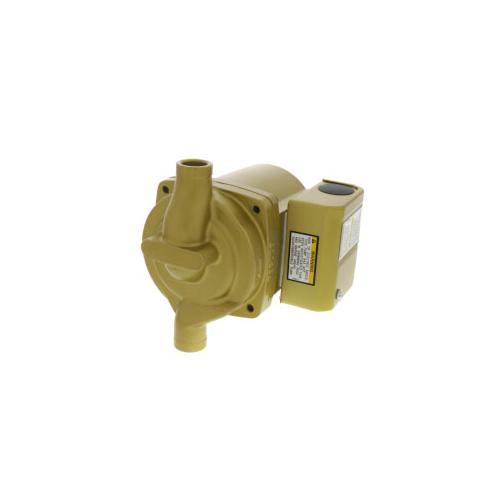

Bell & Gossett 103257LF NBF-8S/LW Circulator Pump, 7 gpm, 115 VAC, 1 Phase

Part # 12873

MFG # 103257LF

Bell & Gossett 103257LF NBF-8S/LW Circulator Pump, 7 gpm, 115 VAC, 1 Phase

$39.99

Item Features

100 percent lead-free bronze pump body NBF, Noryl impeller, ceramic shaft and double-sintered carbon bearings

Pumps shall be of the horizontal system lubricated type specifically designed and guaranteed for quiet operation

Pumps shall have a ceramic shaft supported by carbon bearings

Pump body shall be lead-free bronze for NBF circulators

Motor stator to be isolated from circulating fluid through use of stainless steel can

Motors shall be non-overloading at any point on the pump curve

1/2 in C

Construction: Lead free bronze pump body, Noryl™ impeller, ceramic shaft, carbon bearings

Amperage Rating	0.38 A
Dimensions	4-7/8 in W x 5-7/32 in D x 5 in H
Flow Rate	7 gpm
Frequency	60 Hz
Last Chance Item	Last Chance
Maximum Head	8 ft
Maximum Pressure	150 psi
Motor Speed	2800 rpm
Mounting Type	In-Line
Phase	1 ph
