Part # 12878

MFG # 103400

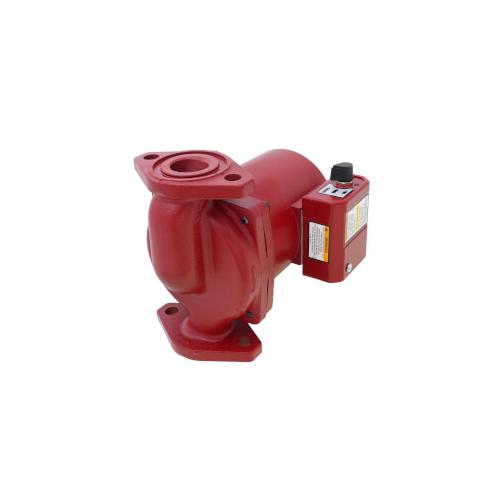

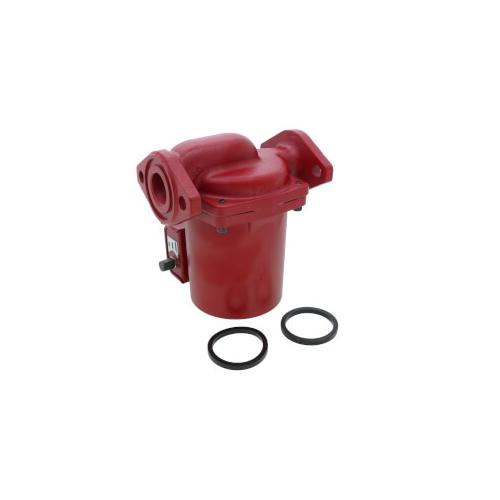

Bell & Gossett 103400 NRF-36 Circulator Pump, 36 gpm, 115 VAC, 1 Phase, 3 Speed

$39.99

Item Features

  • High starting torque for dependable seasonal start-ups
  • Unique Bell & Gossett DuraGlide™ bearing system assures years of trouble-free start-ups
  • Closed impeller design improves operating efficiency
  • Backed by Bell & Gossett’s representatives and a 3 years warranty the best in the business
  • DuraGlide bearing system incorporates several components working together to eliminate seasonal freeze-up
  • Stabilized, heat resistant, polypropylene impeller, its closed design improves operating efficiency
  • Self-cleaning particle shield protects the shaft and bearings from system start-up debris
  • 1-piece, high-nickel stainless steel stator can isolates the stator from system fluid and maintains precision bearing alignment for longer bearing life
  • Carbon bearings, diamond-like ceramic shaft and generous clearances are more resistant to lime, chloride and oxide build-up
  • Face plate and rotor sleeve feature corrosion resistant stainless steel construction for longer life
Amperage Rating

2.3 A

Bearing Type

Carbon

Dimensions

6-3/8 in H x 6-7/8 in L

Flow Rate

36 gpm

Frequency

60 Hz

Impeller Type

Nylon/PPO

Maximum Head

34 ft

Maximum Pressure

150 psi

Motor Speed

3300 rpm

Mounting Type

In-Line
