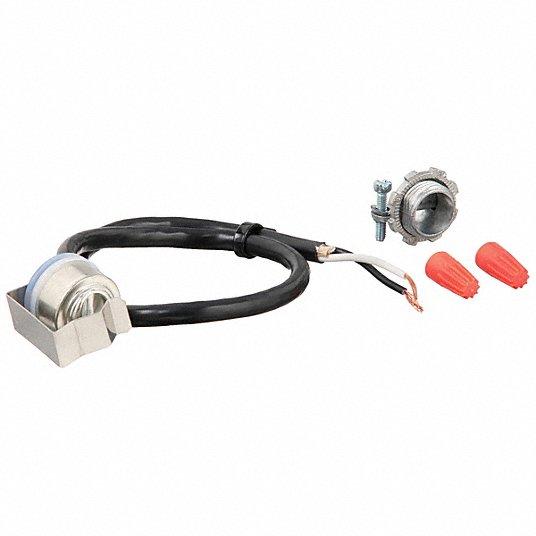

Bell & Gossett 113223 Aquastat Control, 115/230 V, 16 A

Item Features

• Thermostatic Switch Modes: OFF (open) at 120 deg F (48.9 deg C) water temperature and ON (closed) at 100 deg F (37.8 deg C) water temperature
• Thermostatic element: Bimetal, senses surface temperature of outside diameter of pipe
• Pipe Size: AQS-1/2 clips onto 1/2 in copper pipe or 3/8 in steel pipe (OD of pipe 5/8 in ) AQS-3/4 clips onto 3/4 in copper pipe or 1/2 in steel pipe (OD of pipe 7/8 in )
• Mounting: May be installed to sense temperature at the suction or discharge pipe of the pump
• Thermostat Covering: Epoxy (Environmentally sealed)
• Stainless steel pipe clip
• Sensing element: Bimetal
• Wire Leads: Insulated 18 in (457mm) No 18 AWG
• Connects to the lead wires in the connection box of any Bell & Gossett NBF/NRF/SSF circulator
• Suitable for 115/120 V, 60 Hz operation
