Part # 691

MFG # M07432

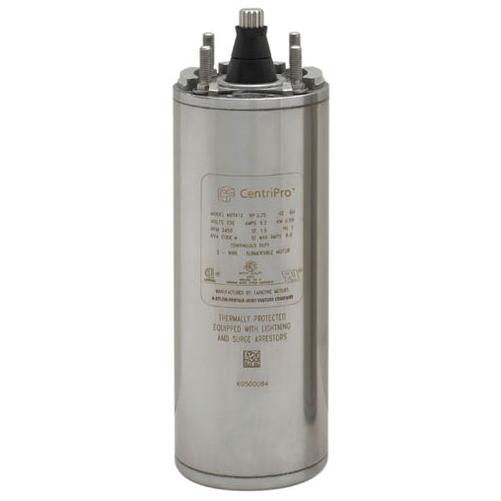

CentriPro® M07432 Submersible Pump Motor, 0.75 hp, 230 VAC, 60 Hz, 3 Phase, 3450 rpm, Top End/Bottom Mount

$39.99

Item Features

  • Use with CentriPro quick disconnect or CSCR style control boxes
  • Laser welded – 21st century welding technology for improved welds
  • 700 lb thrust rating – much higher than competitive motors
  • Precision machined, 1-piece, stainless steel castings used for upper and lower end bells
  • Water-filled design with non-toxic propylene glycol solution to protect the motor during shipping and storage
  • Built-in check valve allows well water to enter motor as needed
  • Replaceable motor lead is held in place by (2) screws for controlled compression – no danger of stripping the lead threads
  • 4 in motor
Amperage Rating

3.3 A

Bearing Type

3-Shoe Thrust

Dimensions

4 in Dia x 10.8 in L

Frequency

60 Hz

Horsepower

0.75 hp

Material

304 Stainless Steel

Mounting Type

Top End/Bottom

Phase

3

Rotation

CCW

Service Factor

1.5
