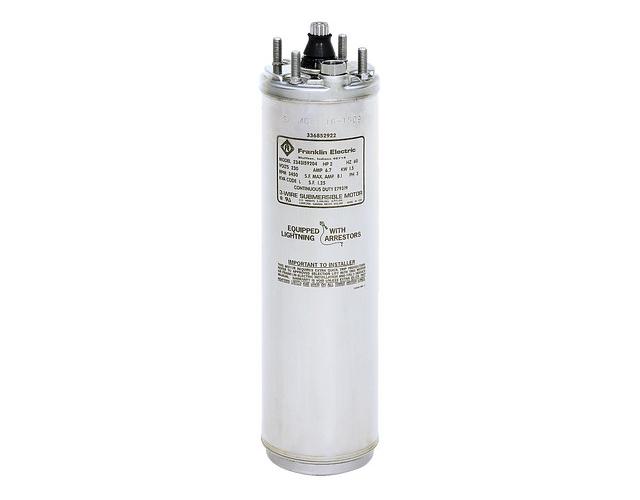

Franklin Electric 2247022604G Submersible Motor, 4 in Shaft, 3 hp, 230 VAC, 60 Hz, 1 Phase, 3450 rpm

Part # 834

MFG # 2247022604G

Franklin Electric 2247022604G Submersible Motor, 4 in Shaft, 3 hp, 230 VAC, 60 Hz, 1 Phase, 3450 rpm

$39.99

Item Features

  • These motors are built for dependable operation in 4 in diameter or larger water wells

  • Water Well

  • 3-Wire

  • Corrosion-Resistant Construction

  • Stainless Steel Splined Shaft

  • Hermetically-Sealed Windings

  • Anti-Track Self-Healing Resin System

  • Water Lubrication

  • Pressure Equalizing Diaphragm

  • Sand Fighter Slinger

Amperage Rating

13.3 A
Bearing Type

Kingsbury Thrust
Dimensions

19.06 in L
Frequency

60 Hz
Horsepower

3 hp
Insulation Class

B
Material

Stainless steel
Phase

Single
Rotation

CCW Rotation Facing the Shaft
Service Factor

1.15
