Part # 138106

MFG # HYCO4

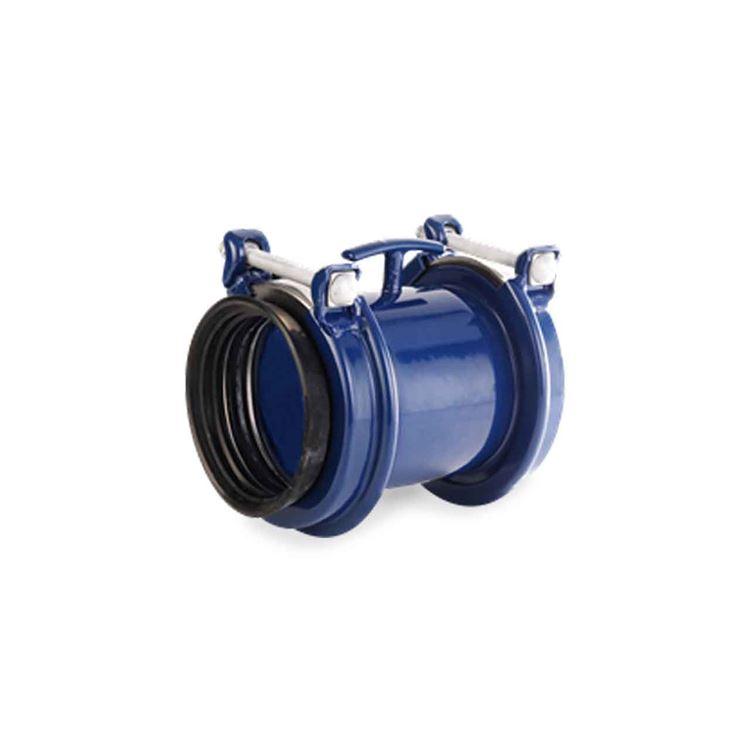

HYMAX® HYCO4 Wide-Range Coupling, 4 in, Grade C Steel End Rings/Grade A Steel Center Ring/Stainless Steel Bridge, Spherical Spacers, Nut and Bolts

$39.99

Item Features

  • Advanced Wide-Range Coupling with a Patented Flip Gasket
  • Eliminates Gasket Removal Mistakes and Maximizes Installer Work Efficiency
  • Only 2-4 Top Facing Bolts, For Faster and Safer Installation
  • Ready-to-Use Design to Eliminate Extensive Preparatory Under-Pipe Digging
  • Allows 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage
  • Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
  • Suitable for All Types of Pipes – Ductile Iron, Cast Iron, Steel, copper, PE, PVC, AC, GRP
  • One Product Can Connect Pipes of Two Different Materials
  • 4.25-5.63 Overall Range (inch)
  • 4.25-5.00 Range in closed gasket position (inch)
Length

8.8 in

Material

Grade C Steel End Rings/Grade A Steel Center Ring/Stainless Steel Bridge, Nut and Bolts 0, Spherical Spacers

Pressure Rating

39 psi

Size

4 in

Temperature Rating

-2 to +125 deg F

Thickness

14 mil
