Part # 12824

MFG # 1BL016

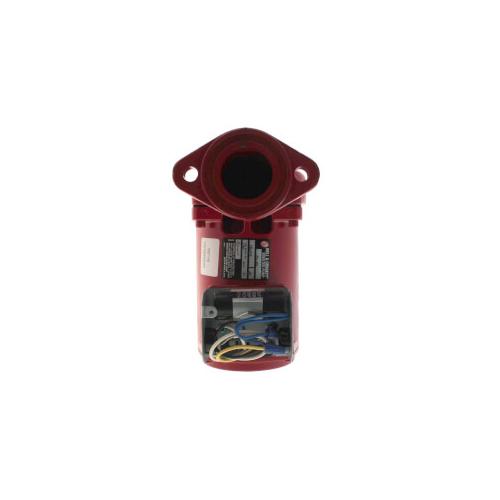

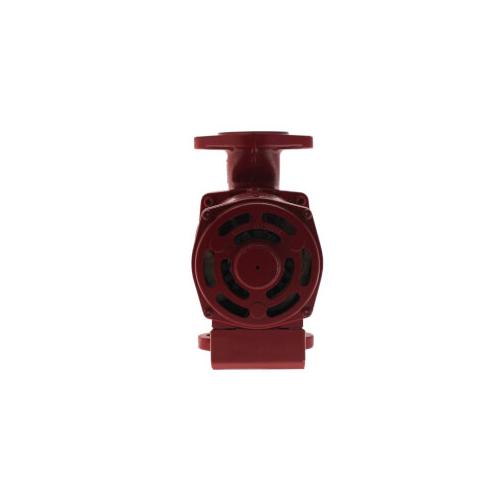

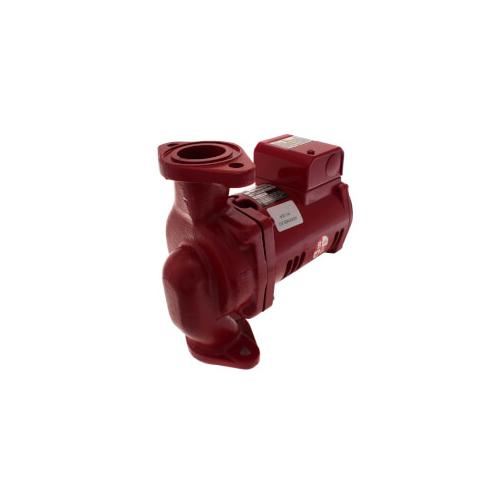

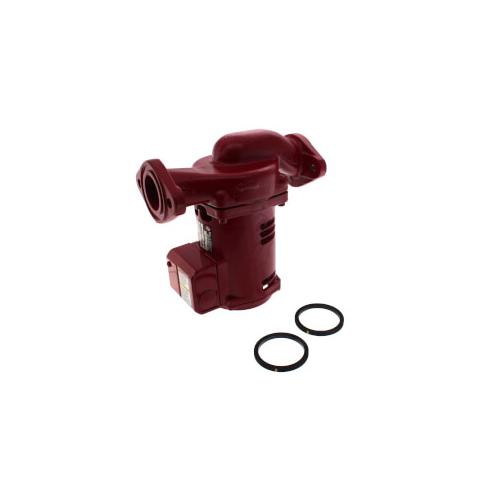

Bell & Gossett 1BL016 PL50 Booster Pump, 70 gpm, 1/6 hp, 115 VAC, 1Phase

$39.99

Item Features

  • Permanently lubricated
  • Cast iron body
  • PL boosters equipped with a drip-proof motor are recommended for indoor use only
  • Bell & Gossett powerful, dry-motor design delivers exceptional performance
  • 25 percent more efficient than competition
  • Precision-machined and balanced alloy steel rotor for superior performance
  • Solid stiff-shaft design is constructed of high-strength alloy steel impervious to cracking caused by thermal stresses
  • XL-11™ Precision-crafted bearing system
  • Advanced close-coupled design increases pump life and efficiency, assures dependable seasonal start-ups and can easily handle difficult water conditions
  • Tough, durable seal system features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life and rugged operation
Amperage Rating

1.8 A

Bearing Type

Ball

Dimensions

9-1/8 in L x 8-1/12 in W

Flow Rate

70 gpm

Frequency

60 Hz

Impeller Type

Glass-Filled Noryl

Maximum Head

18 ft

Maximum Pressure

150 psi

Motor Speed

3300 rpm

Mounting Type

In-Line
